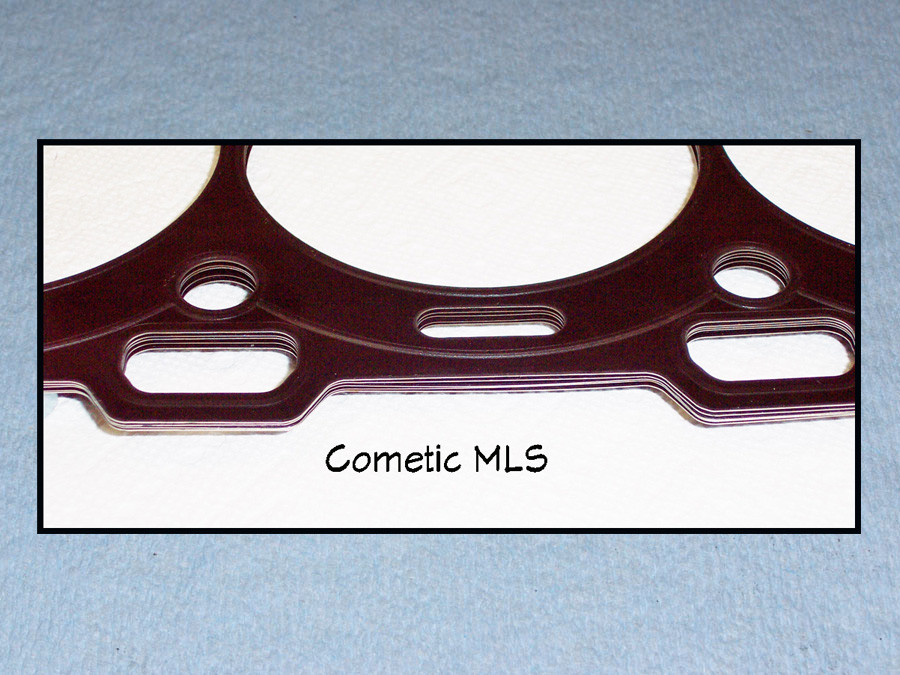

Cometic MLS, RH Cylinder Head Gasket Set. Fits 90~95 ZR-1 LT5.

The Cometic MLS LT5 gasket is comprised of five layers of stainless steel. Cometic uses stainless steel for increased strength, its ability to rebound and resist corrosion. The outer layers of the gasket are embossed and coated on both sides with a Viton rubber material designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 250°C or 482°F.

The center or shim layer of the gasket is comprised of an uncoated stainless steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for any kind of head and block combination. By design, the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

The compressed thickness of the MLS gasket is .050" verses .065" for the OE gasket. For a 350 ci engine, the MLS gasket will add .4 to the compression ratio. If the original compression was 11.0:1 it will increase to 11.4:1. The finish on the cylinder head should be 50 RA or finer.

 Refer to #223
